Derex 1340 -14 DR

Conquer tough ground conditions in record time on your next water well, geothermal, or RC exploration project with the innovative Derex 1340-14 DR. Enjoy the legendary performance and reliability of the 1340 drill, with room for onboard air, allowing you to carry everything you need to get the job done. The Derex 1340-14 comes mounted on the back of a Peterbilt 567, but we can custom build on a truck that suits your specific needs. Contact us for more details!

Download Spec Sheet

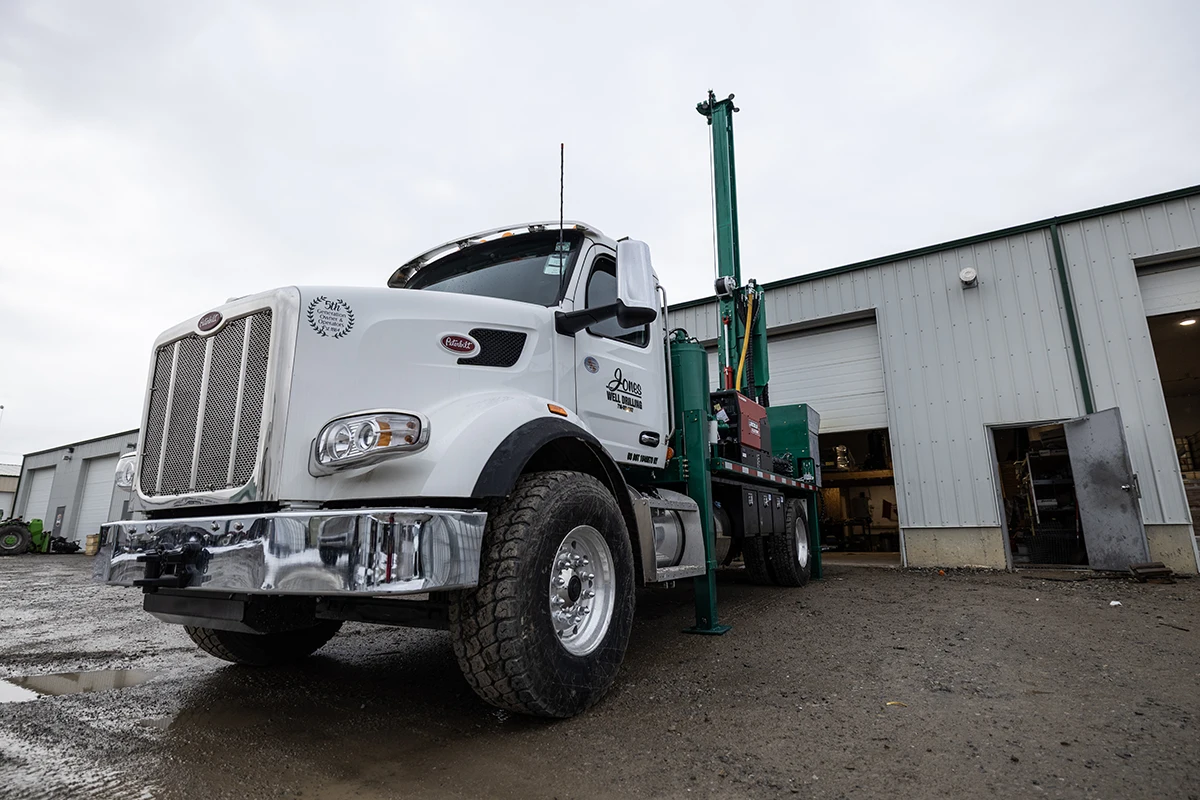

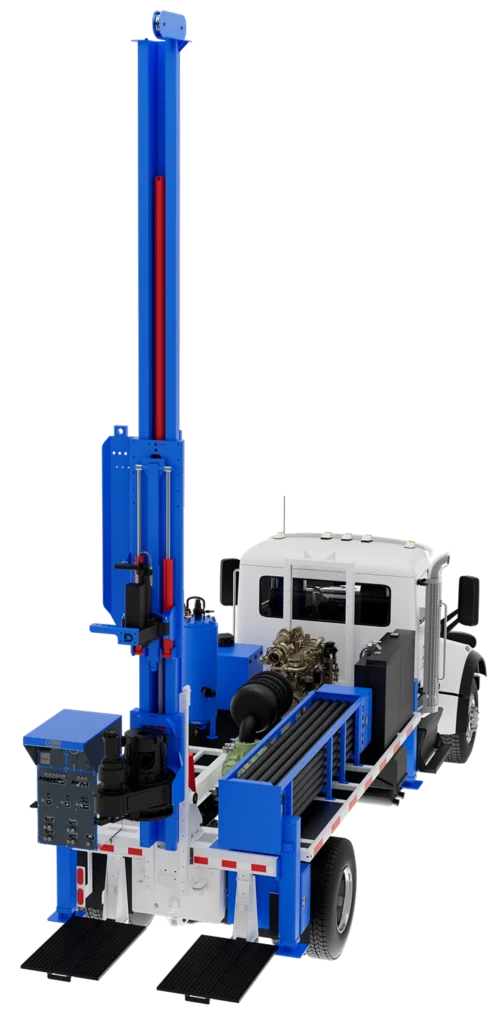

Derex 1340-14 DR Drilling Rig

Derex 1340-14 DR Features & Specifications

Download Spec Sheet

Truck
Peterbilt 567

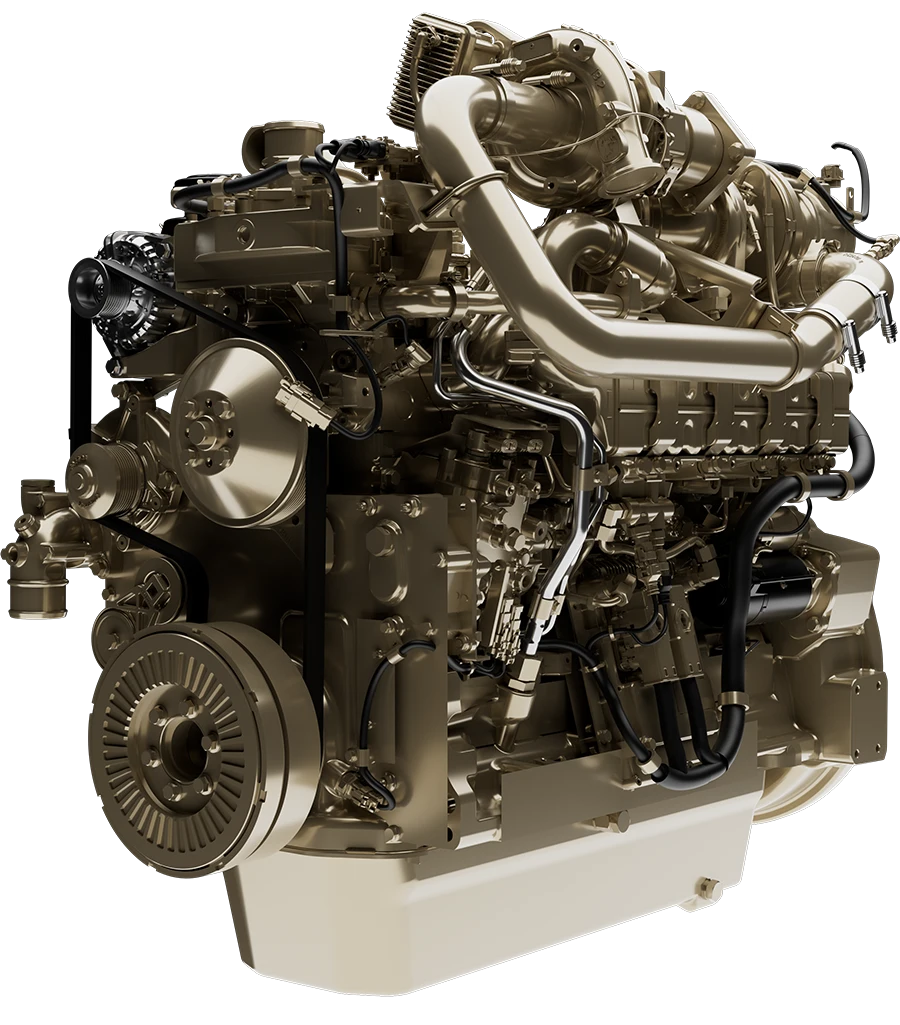

Paccar 11 Litre
Allison 6 speed automatic
Air ride

Transfer Case
Namco (oilfield quality)
Safe Shift

Hydraulic System
Bosch Rexroth plus gear pump

Top Head
Variable torque and RPM with 2” thru-hole
0-125 rpm @ 3,500 lbf

Lower drive
Variable torque and RPM with 10” thru-hole
0-23 rpm @ 20,000 lbf

Diverter
Simple seal design with 4” NPT discharge
to control cuttings.

Derrick & Feed System
13’ top head stroke
40,000 lbs pullback
20,000 lbs pulldown
100 FPM

Derrick slide/ dump
4’ Derrick slide for angles up to 45°

Main Winch
Manual jib
2,500 lb.
Remote on helpers side for winch

Control Panel
Straight hydraulic controls (no electrics to fail)
Marine grade electric switches (for lights)
Murphy engine monitor display
Twin platforms

Levelling Jacks
Four 36” stroke independently controlled

Night Lights
6 LED night lights

Tool Boxes
30”x 18” x 18”

Overall Dimensions
Length: 24’11”
Width: 8’ 6”
Derrick up height: 24’ 6” – 28’ 6” with Derrick slide
Derrick down height: 11’

Water Injection
9 gpm FMC injection pump

Gross Weight
34,000-36,000 lbs

Derex 1340-14 DR Options

Sand Line Winch
1,500’ sand line

Mud Pump
3x2x13 centrifugal 300 gpm/300 psi
Centerline piston 150 gpm/600 psi

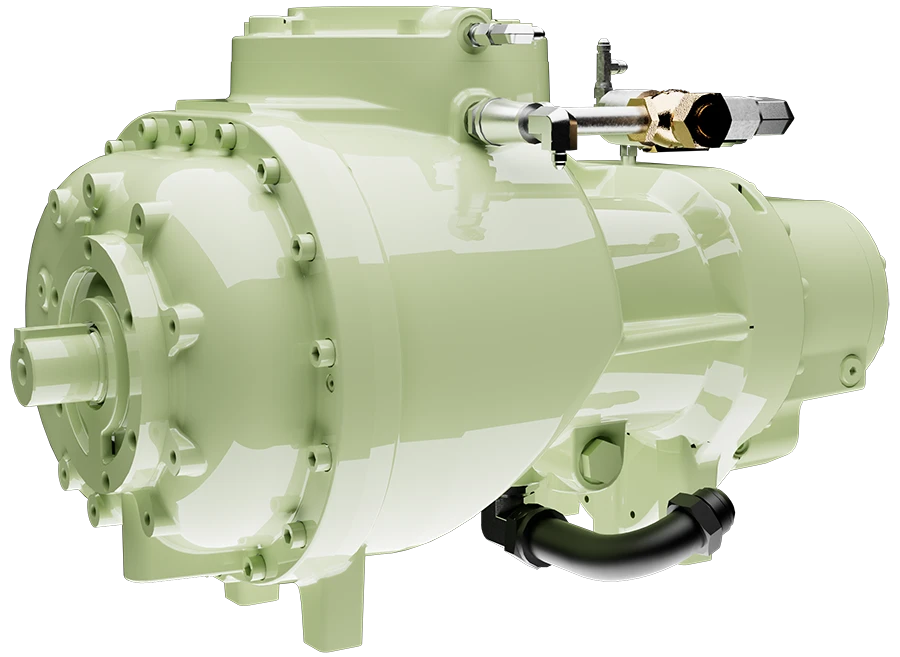

Air Compressor
Vanair/ Sullair 600 cfm / 250 psi @ 1,800
rpm and 733 cfm / 150 psi @ 2,200 rpm.

Line Oiler
Many oilers available

Water Injection
18 gpm FMC injection pump

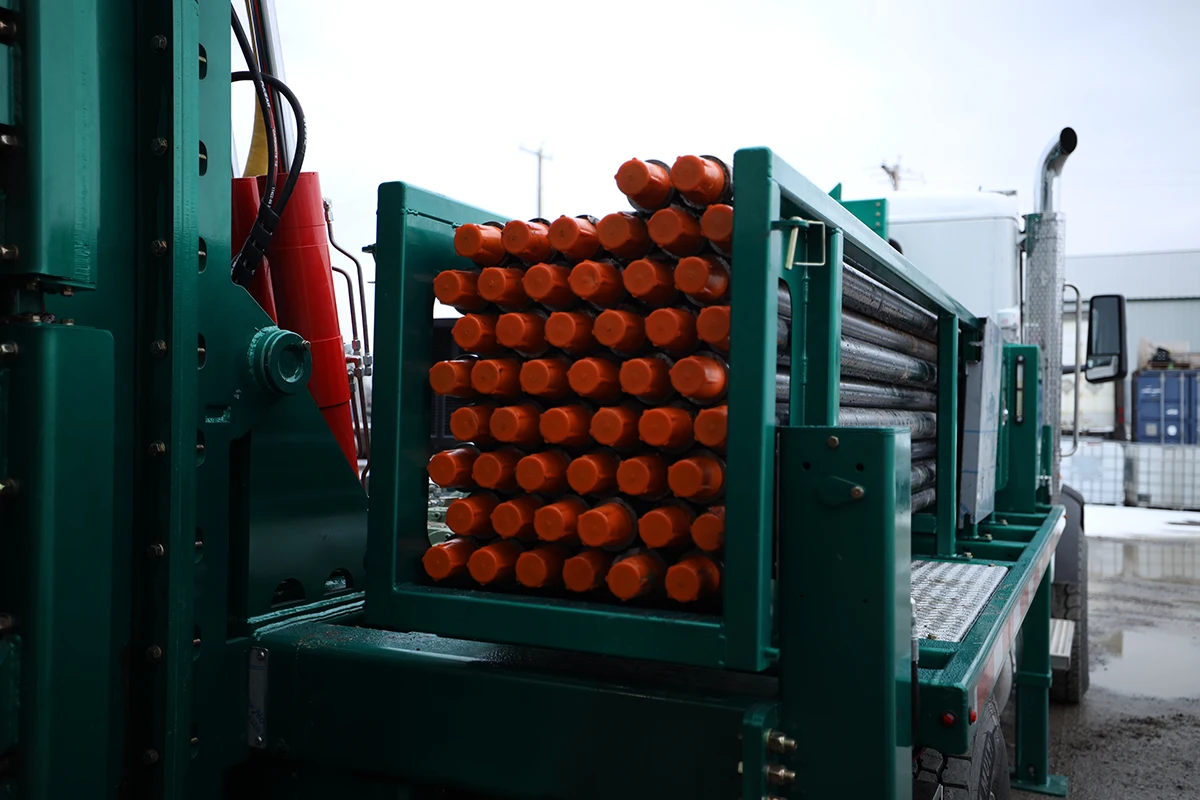

Drill pipe packages

Wire feeder and box

Hydraulic or gas welders
