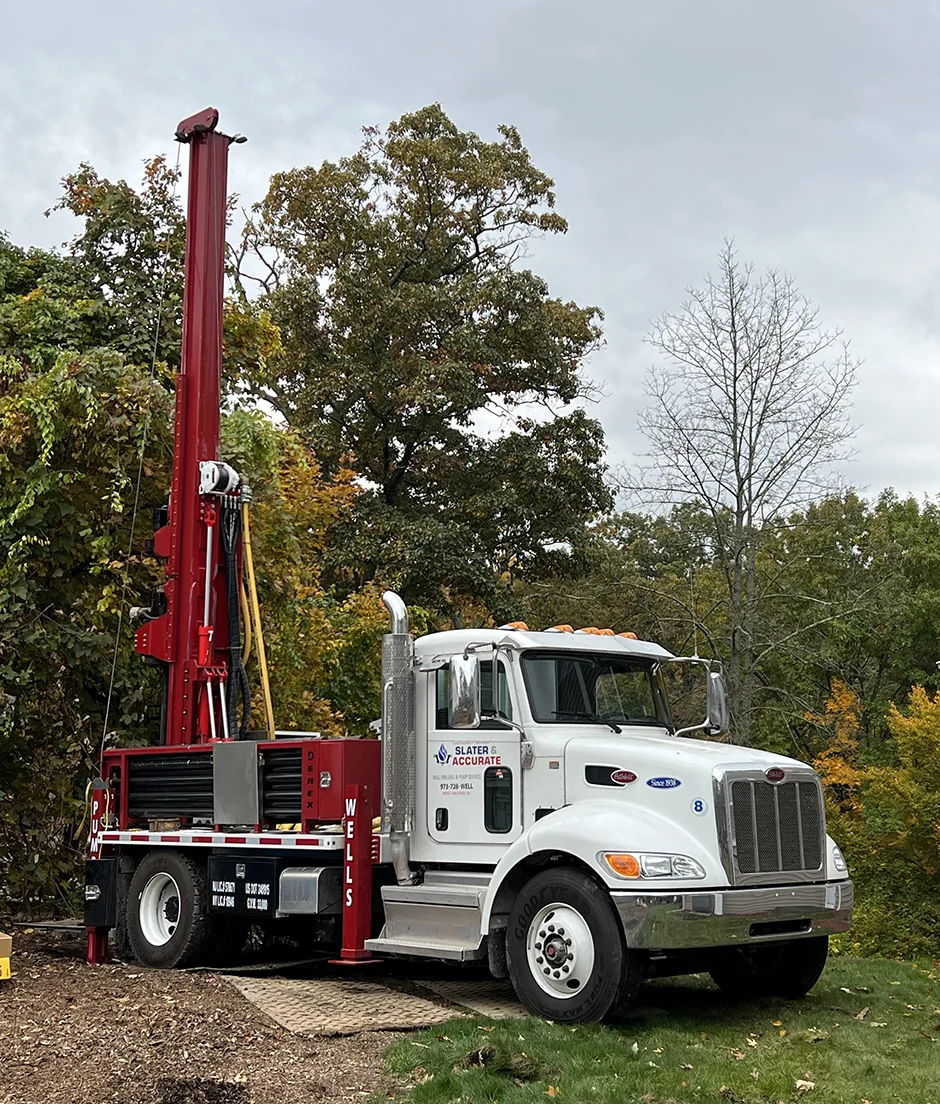

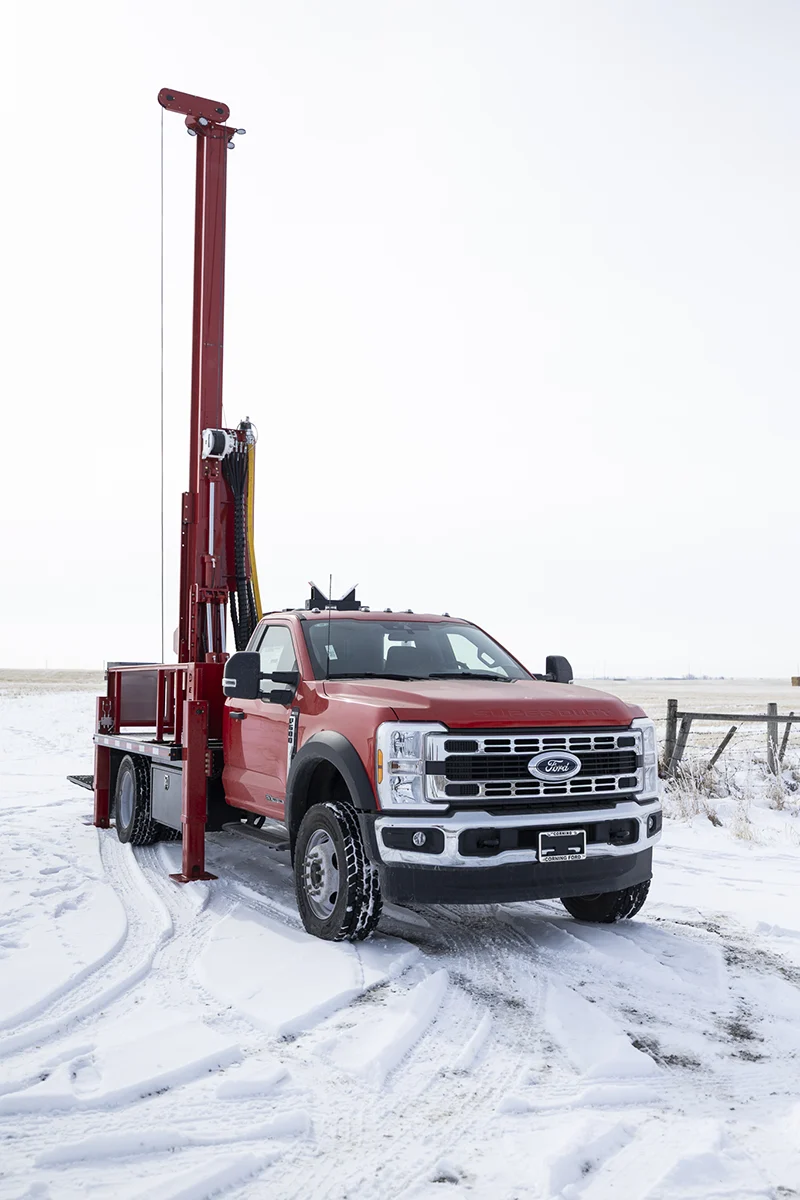

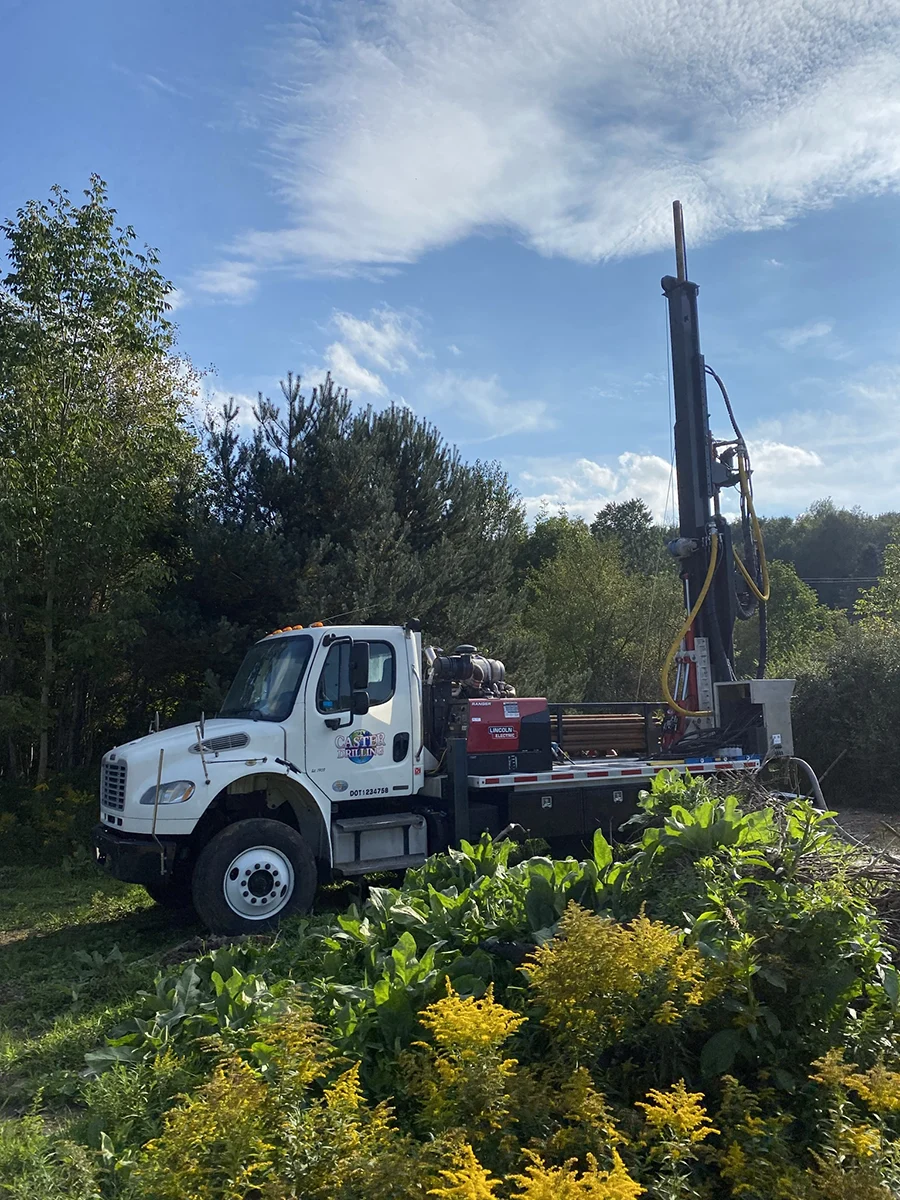

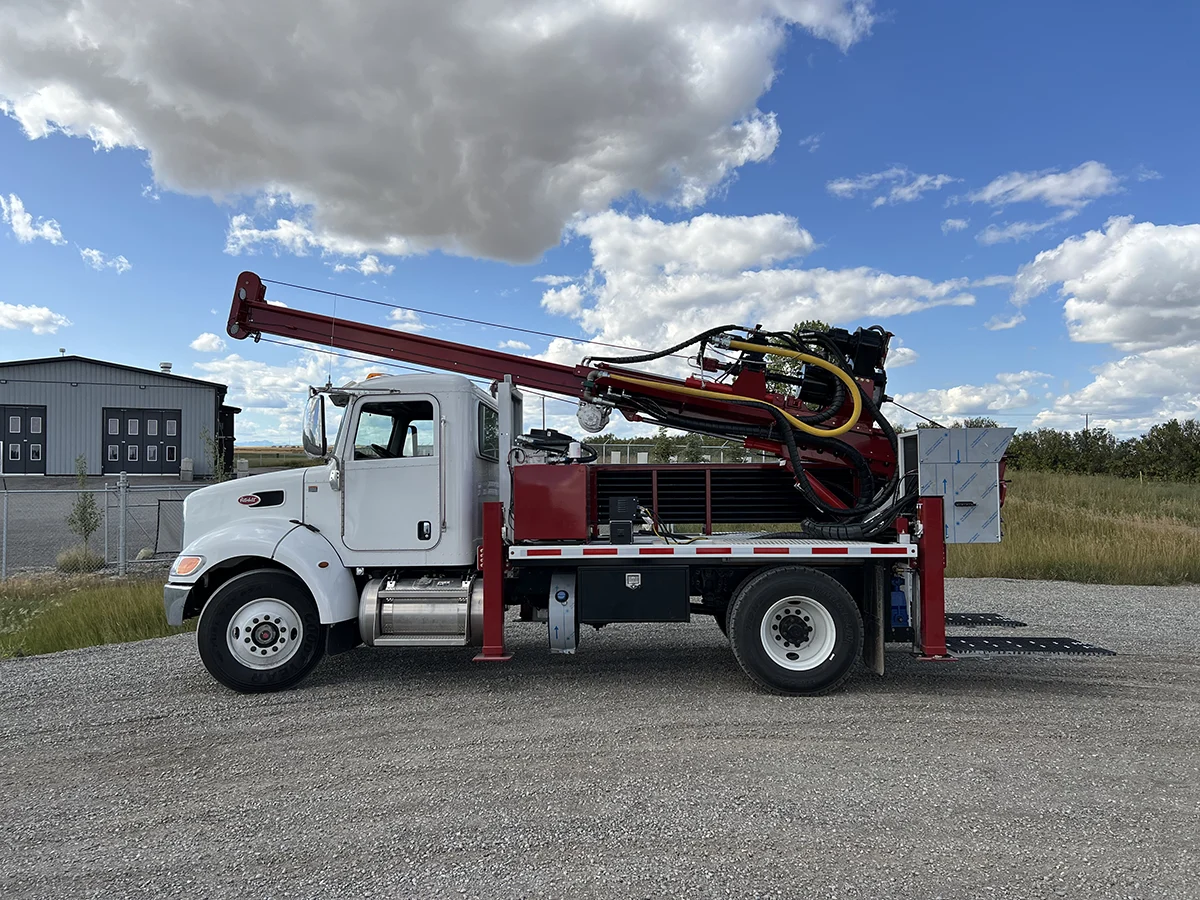

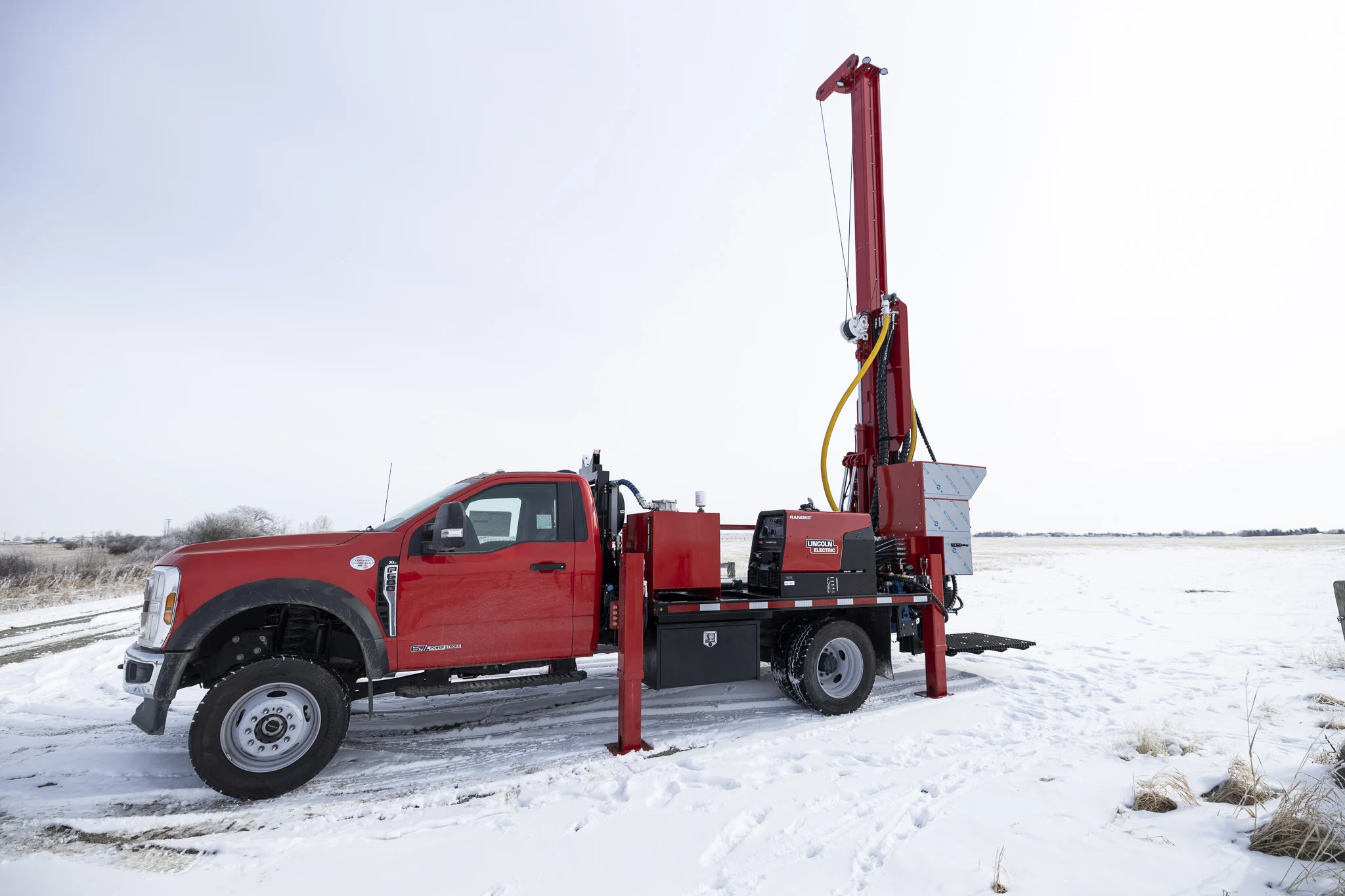

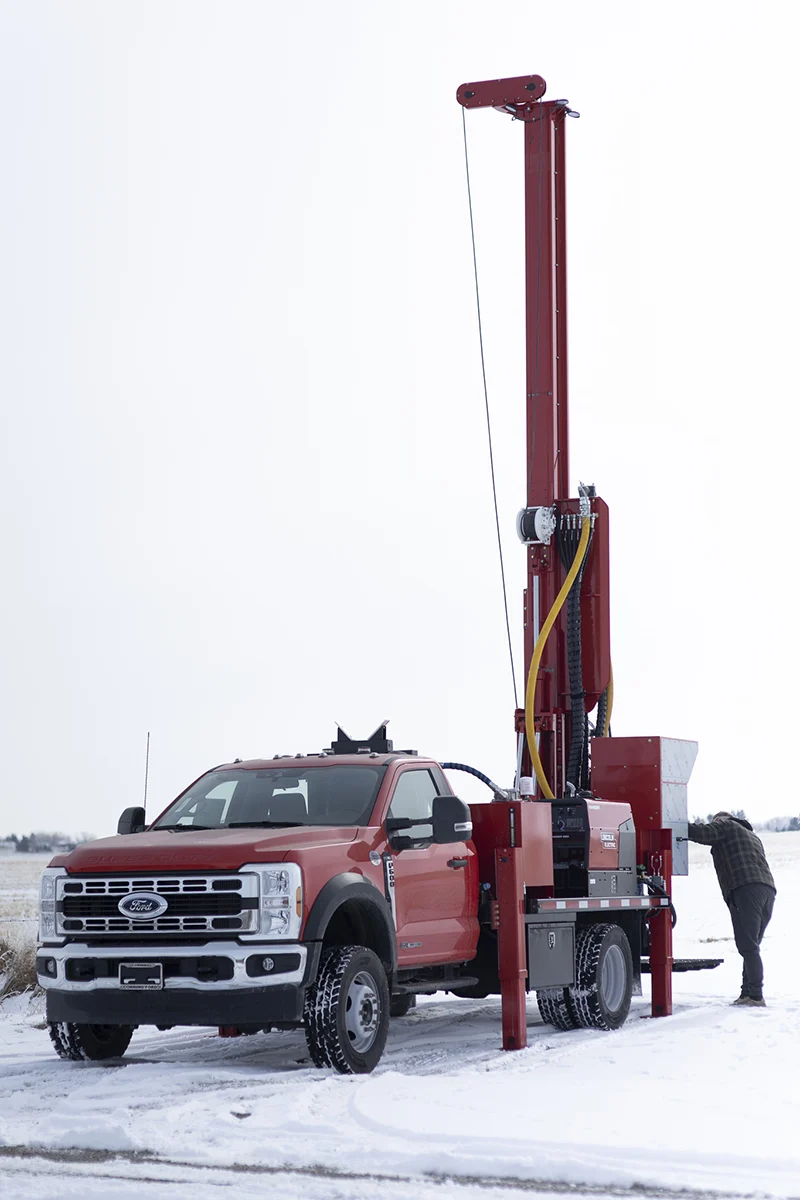

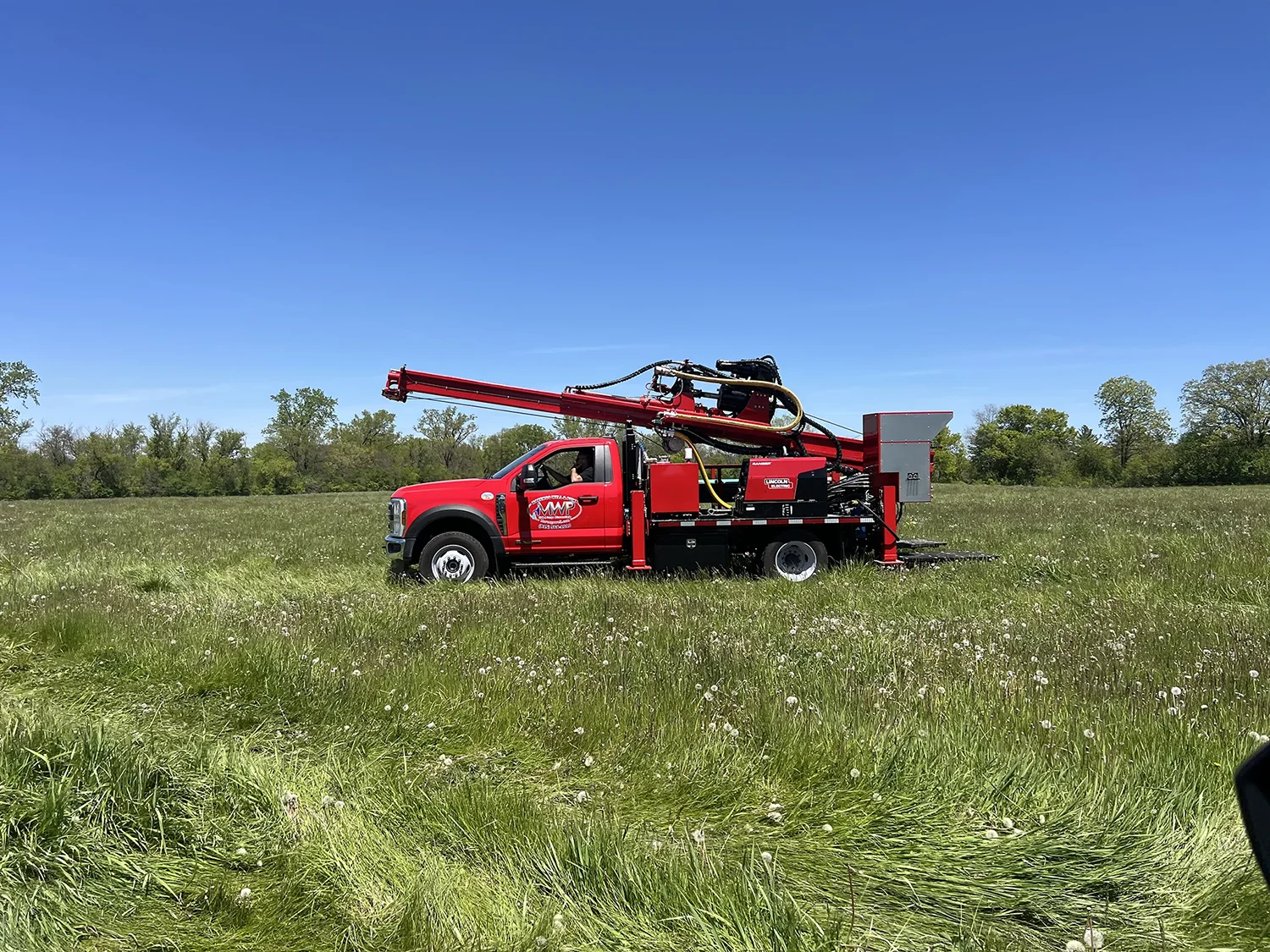

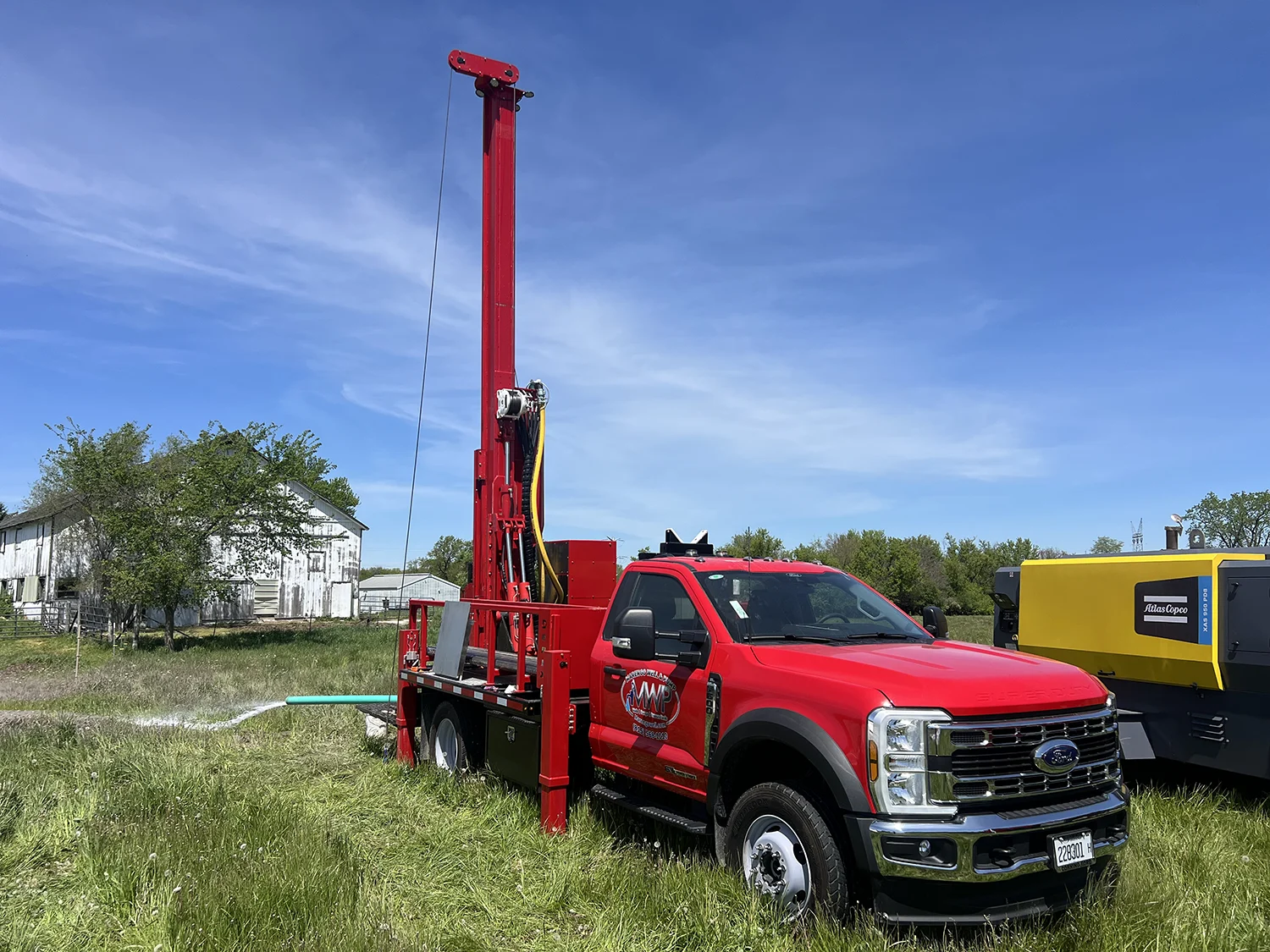

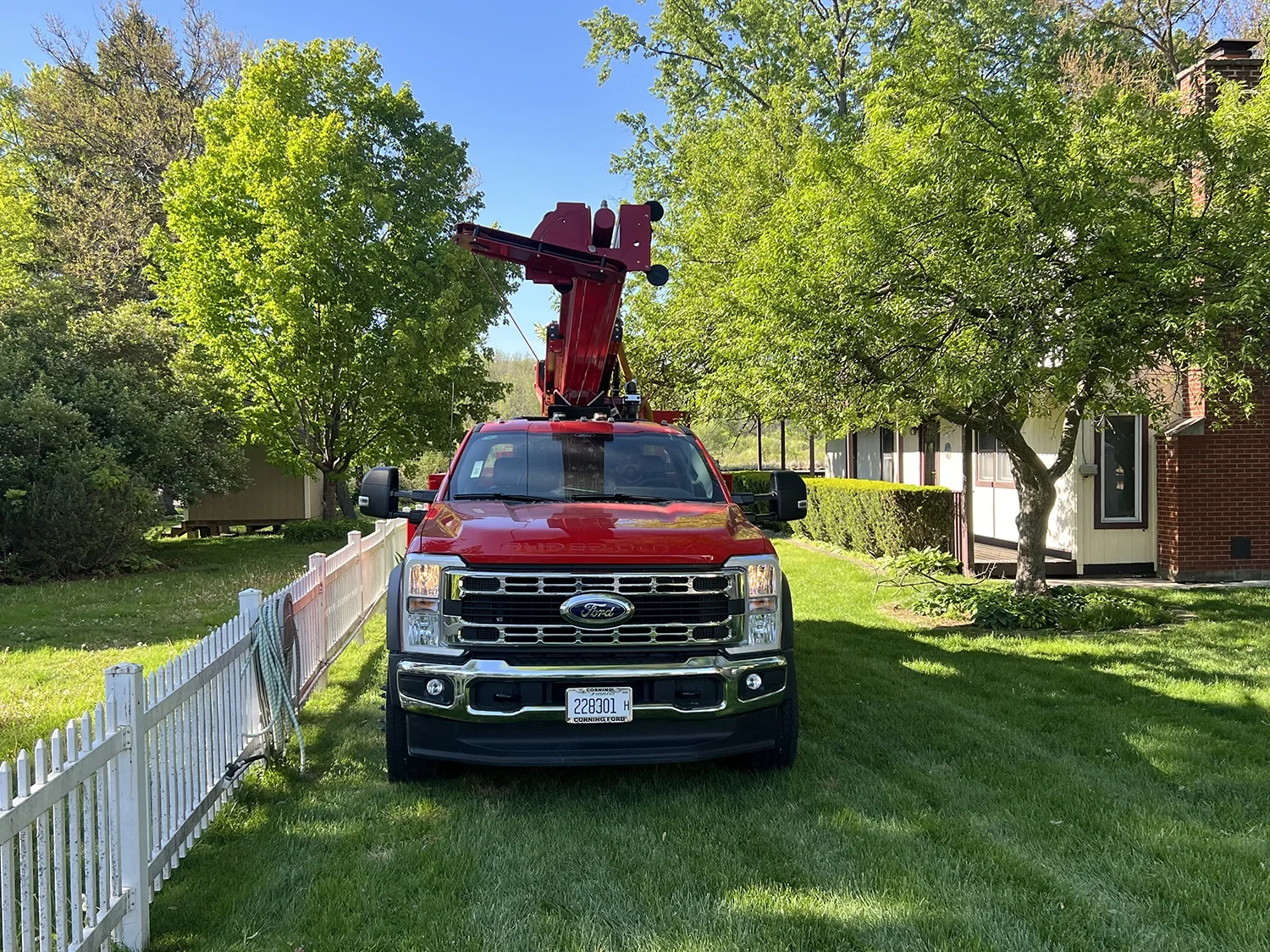

DEREX 1340 DR

DEREX 1340 DR

DRIVE WITHOUT A CDL

The 1340 DR is the light-weight, non-CDL dual-rotary drilling solution built for drilling companies that want capability without the complexity. The 1340 DR keeps your team on the road without needing specialized licensing. This makes hiring easier, expands your labor pool, and lowers onboarding time. Just tow your air!

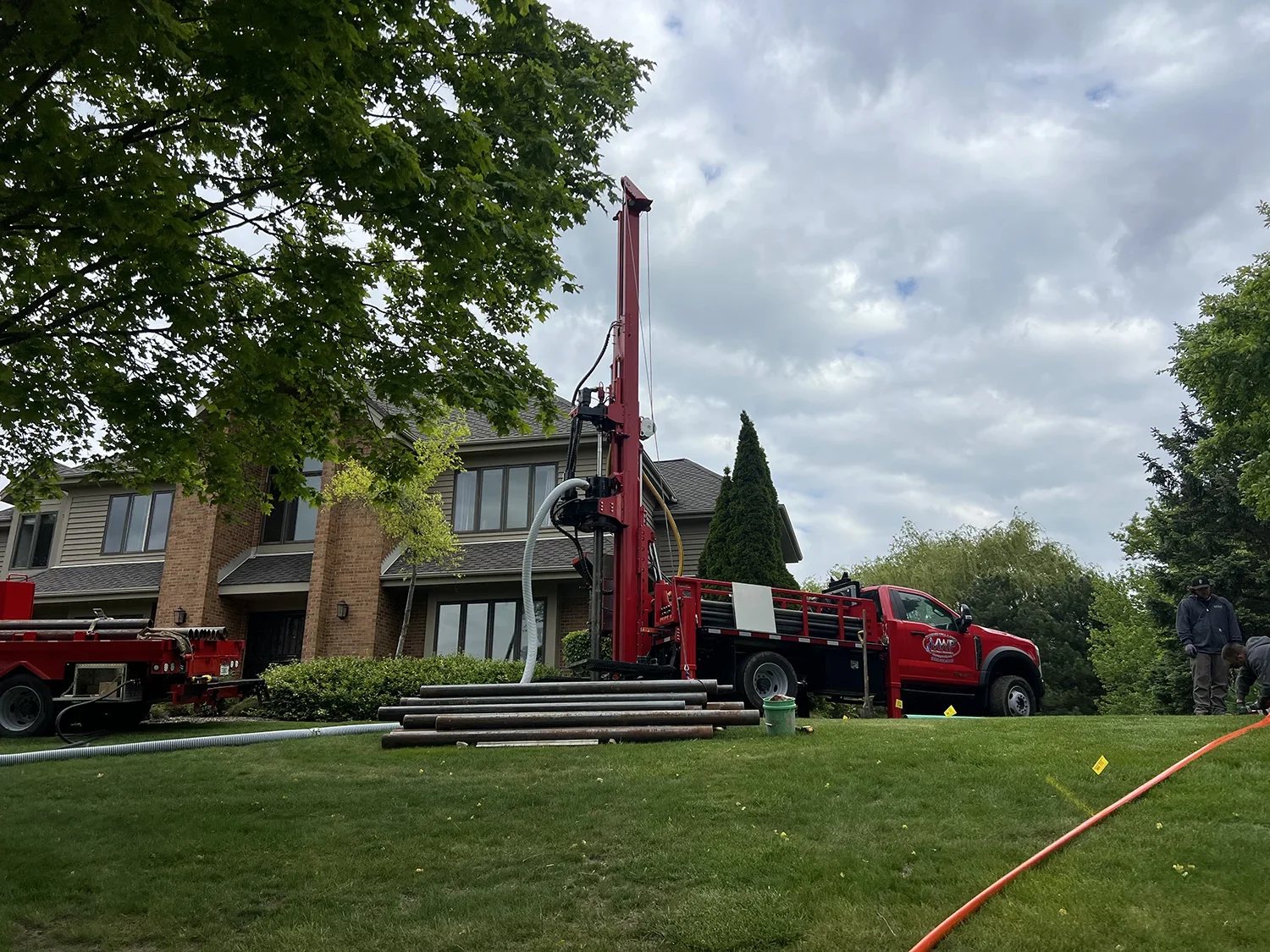

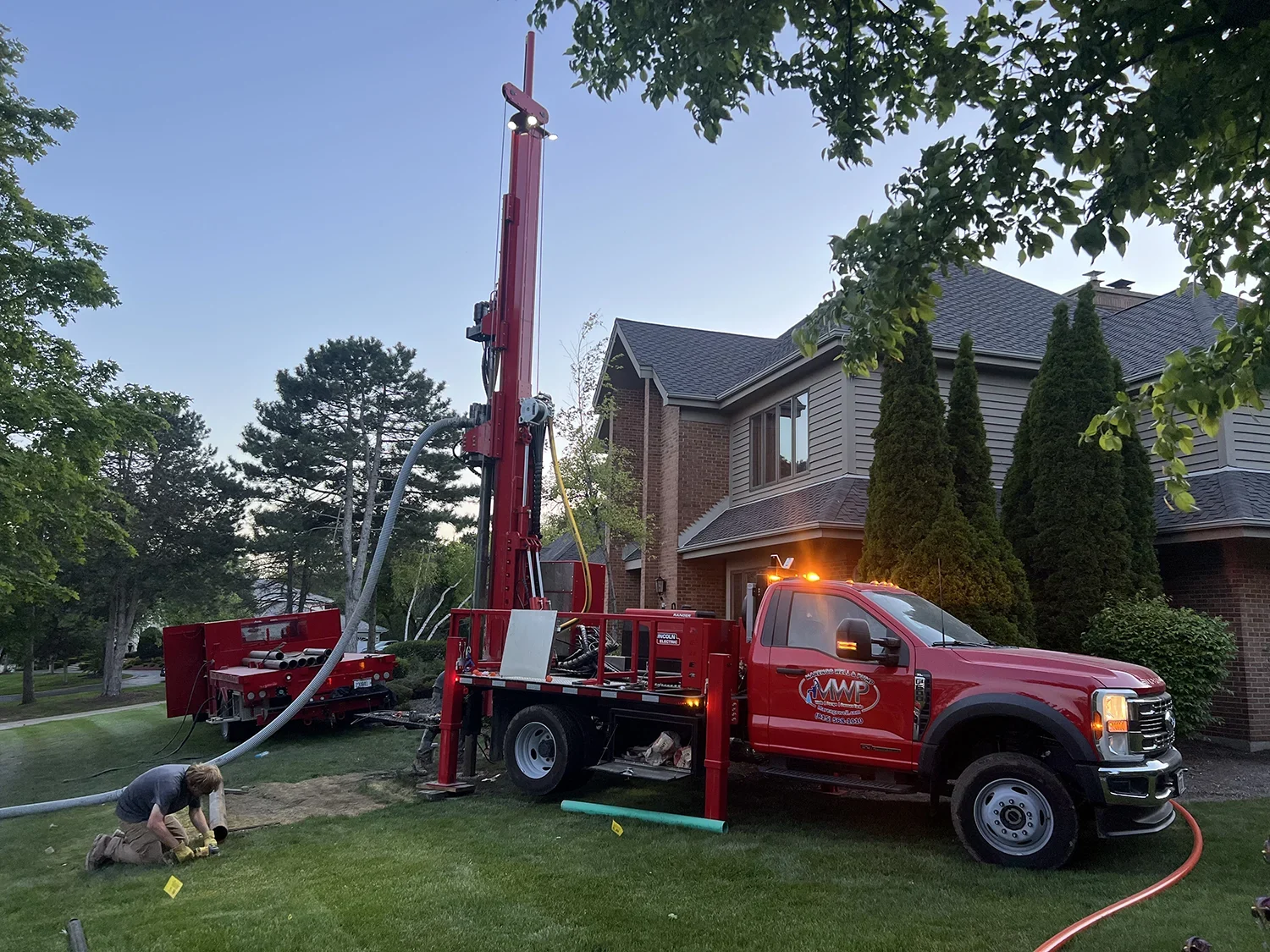

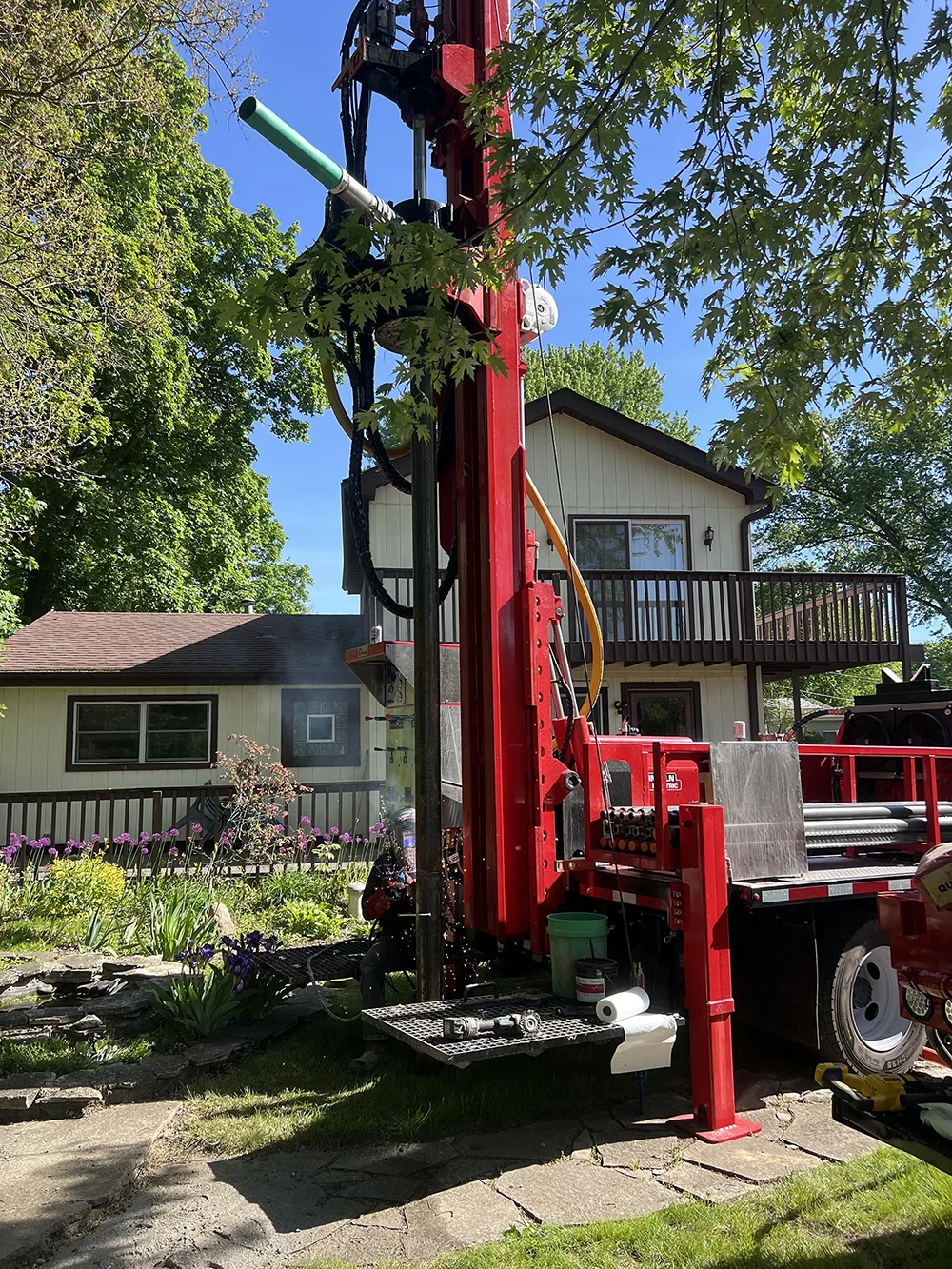

The Derex 1340 DR is the perfect solution for domestic water well, geothermal, and RC exploration projects. Take the stress out of drilling through difficult overburden, drill and set casing at the same time with the Derex 1340 DR.

Download Spec Sheet

SPECIFICATIONS

Hydraulic System
Gear pump

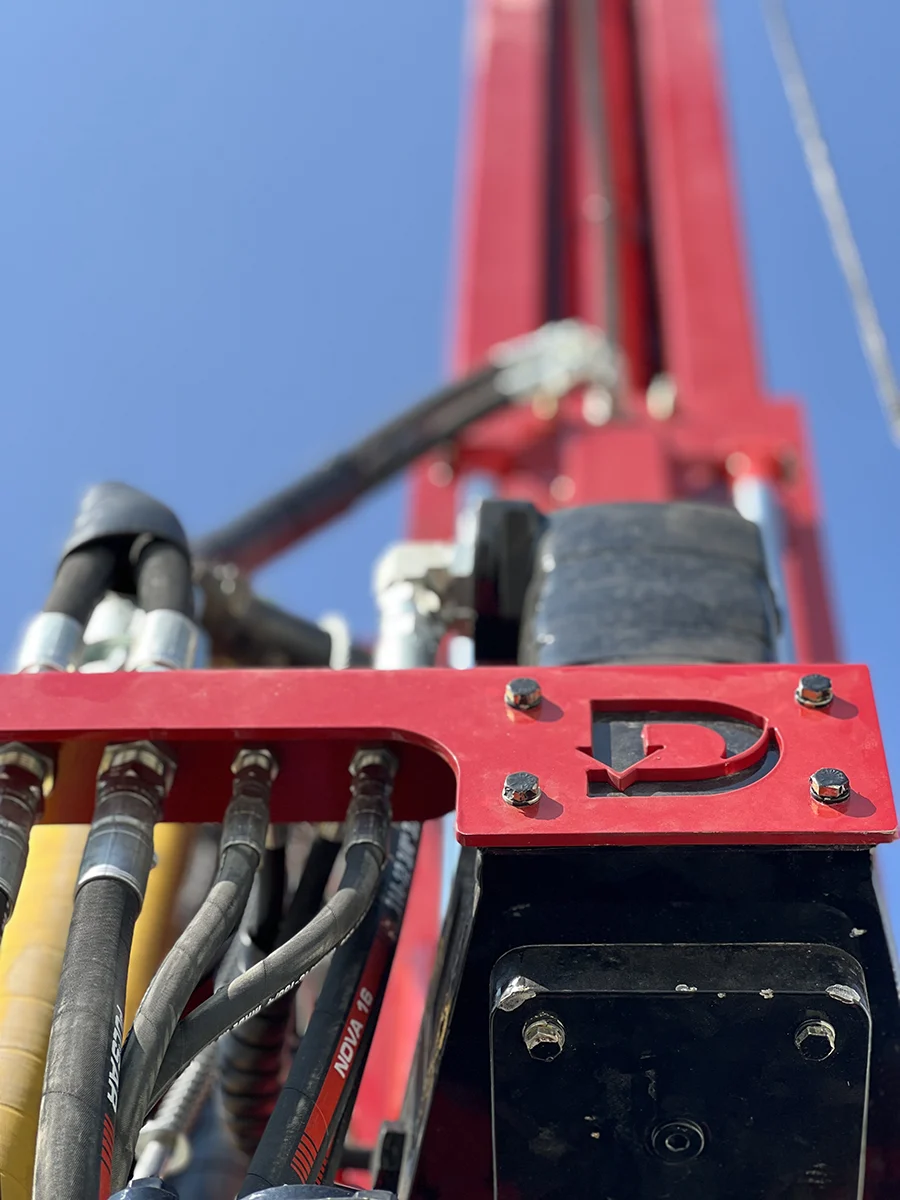

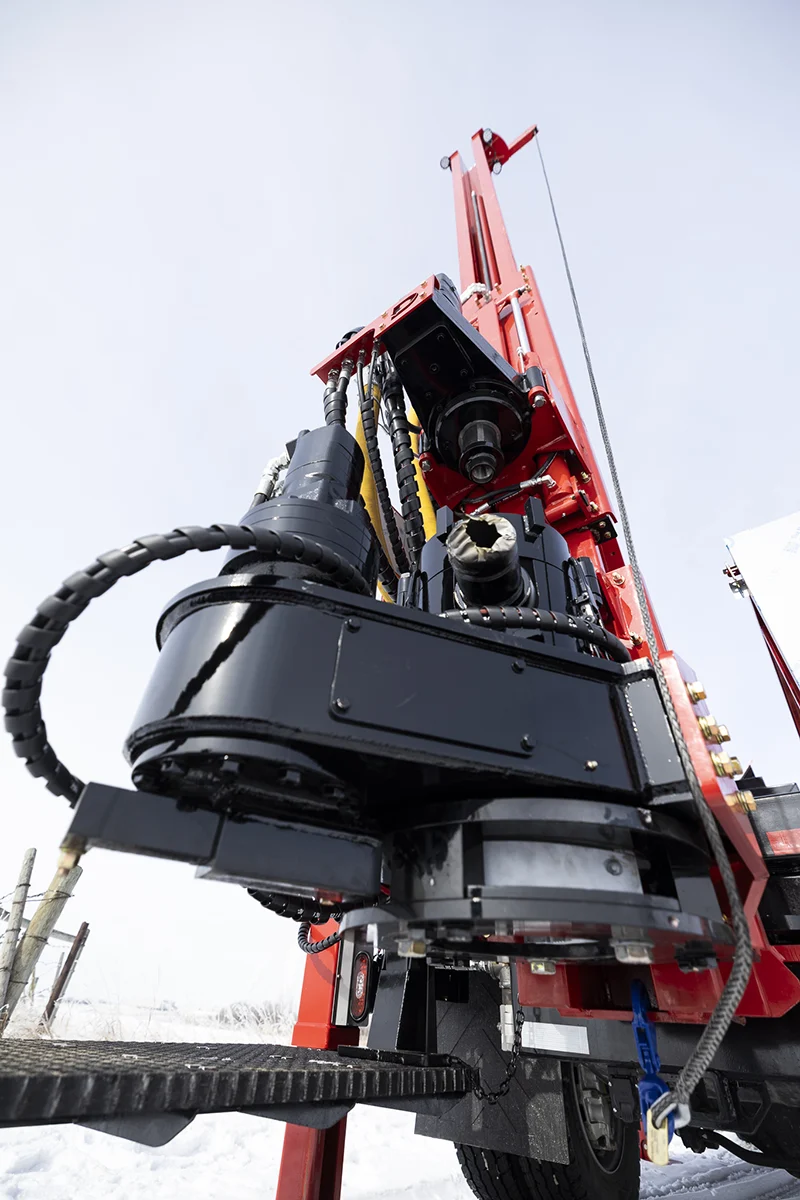

Top Head
Variable torque and RPM with 2” thru-hole
0-125 rpm @ 3,500 lbf

Lower drive
Variable torque and RPM with 10” thru-hole
0-15 rpm @ 12,000 lbf

Diverter
Simple seal design with 4” NPT discharge
to control cuttings.

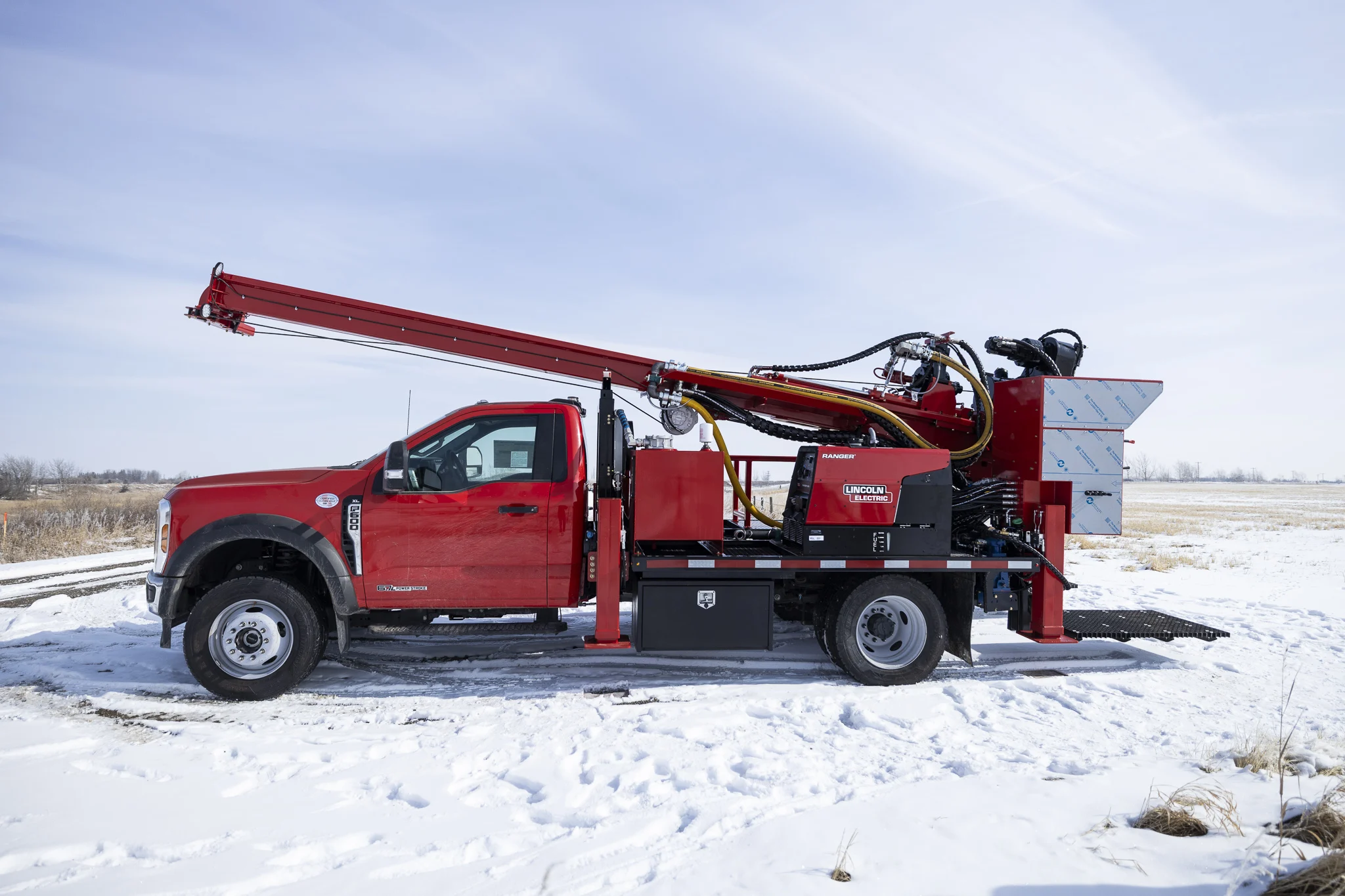

Derrick & Feed System
13’ top head stroke
40,000 lbs pullback
20,000 lbs pulldown
100 FPM

Derrick slide/ dump
4’ Derrick slide for angles up to 45°

Water Injection
9 or 18 gpm FMC injection pump

Main Winch
Manual jib
2,500 lb.
Remote on helpers side for winch

Control Panel
Straight hydraulic controls (no electrics to fail)
Marine grade electric switches (for lights)
Murphy engine monitor display
Twin platforms

Levelling Jacks
Four 30” stroke independently controlled

Night Lights
6 LED night lights

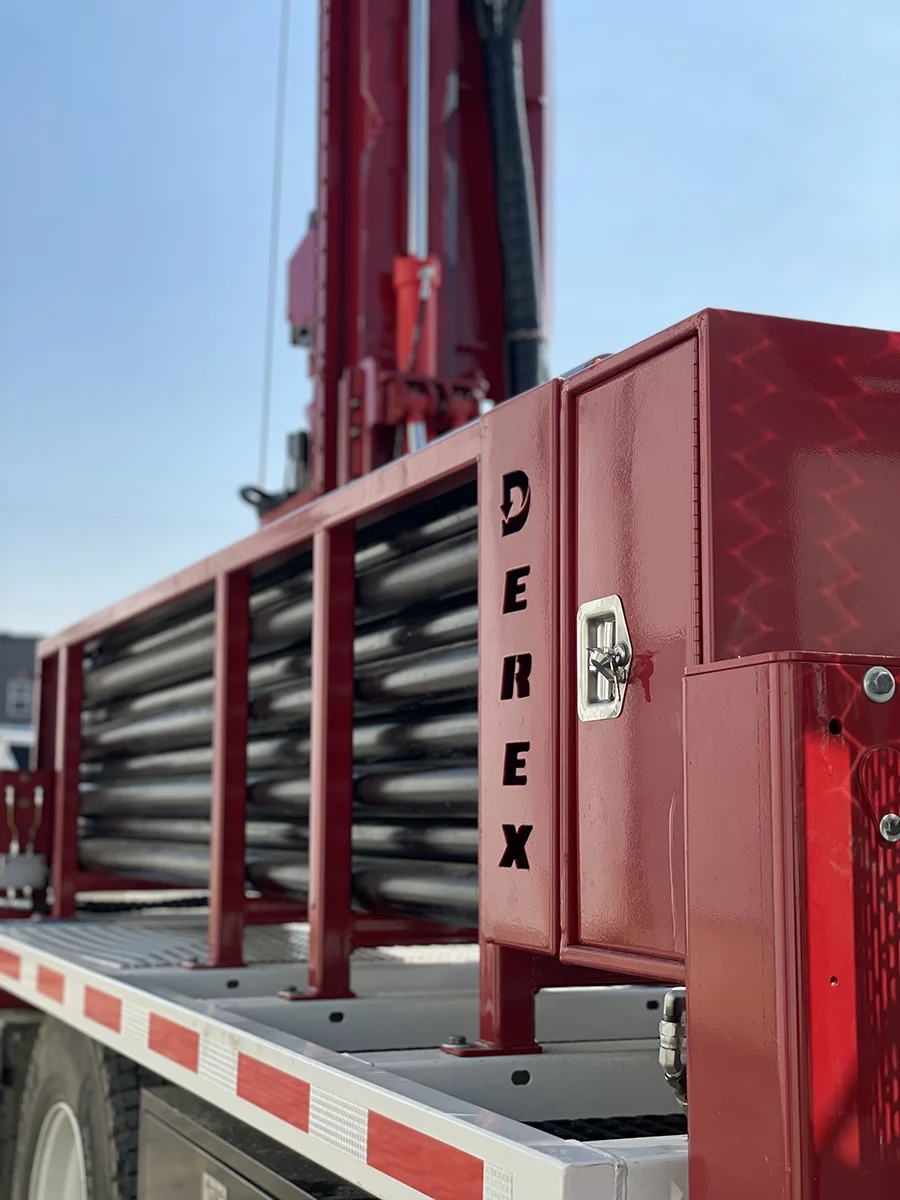

Tool Boxes
30”x 18” x 18”

Options

Sand Line Winch
1,500’ sand line

Mud Pump
3x2x13 centrifugal 300 gpm/300 psi
Centerline piston 150 gpm/600 psi

Line Oiler
Many oilers available

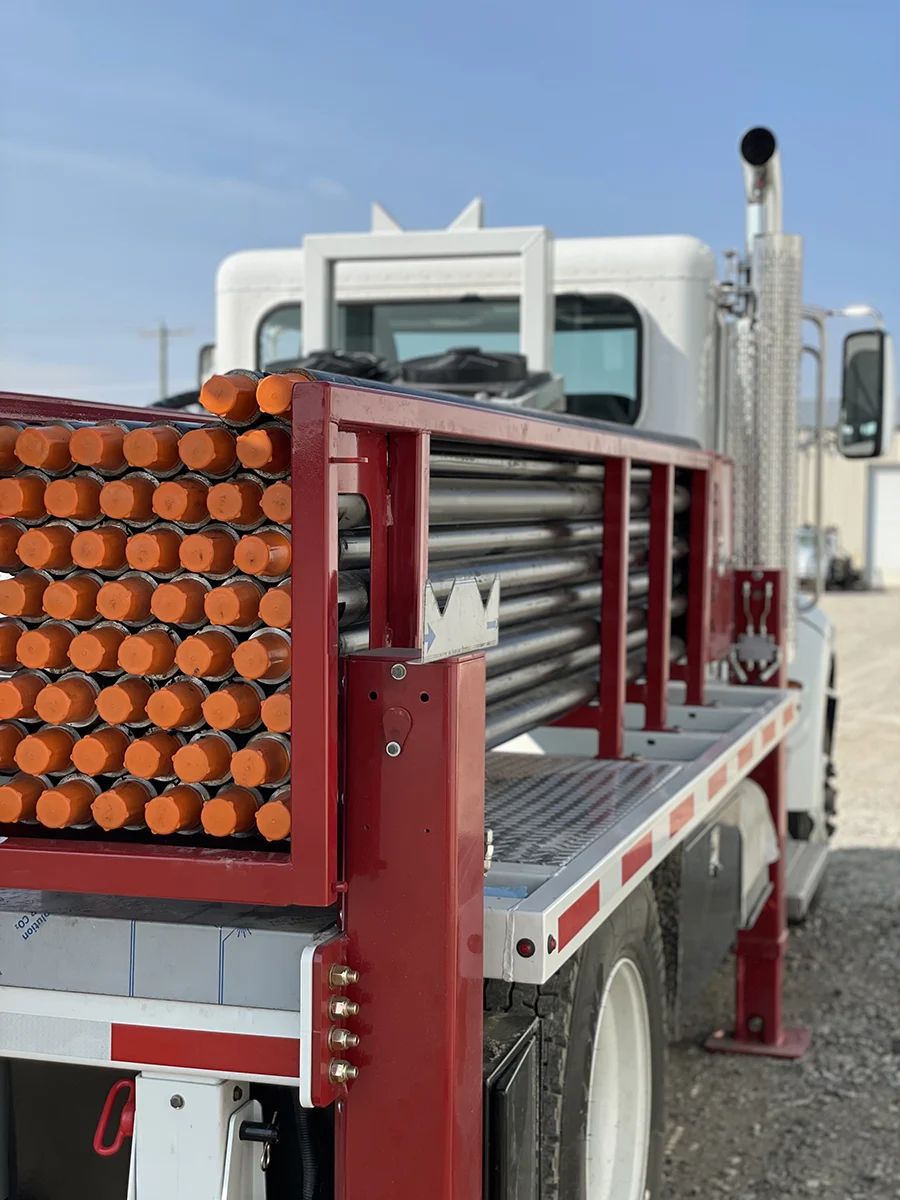

Drill pipe packages

Wire feeder and box

Hydraulic or gas welders
